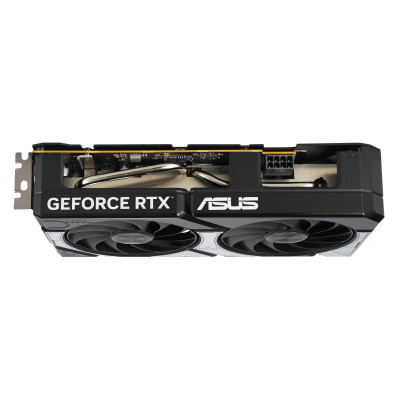

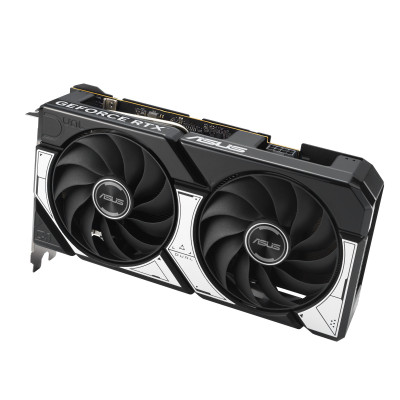

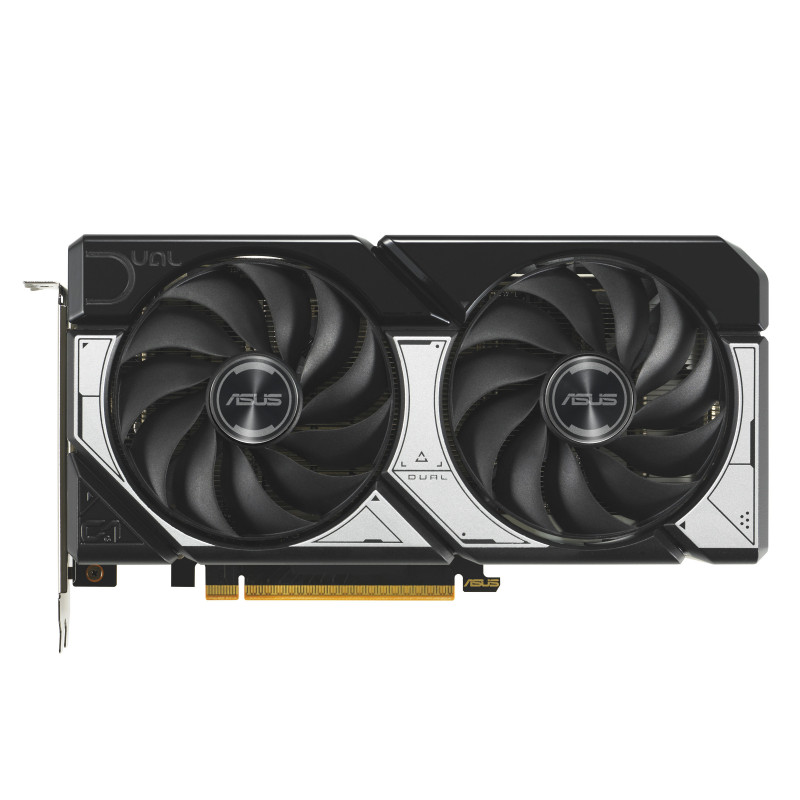

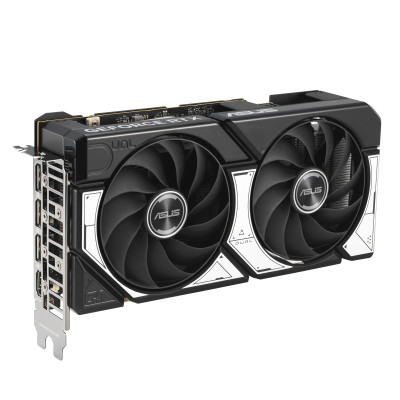

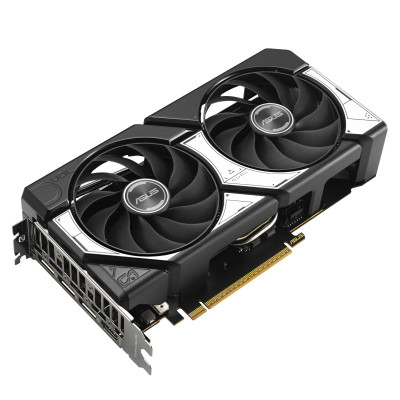

ASUS Dual -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7

DUAL GEFORCE RTX™ 5060
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Cooling
2.5-slot Design

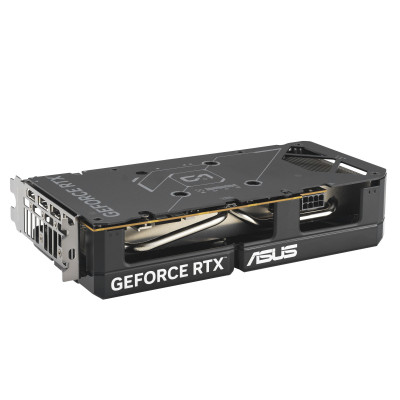

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

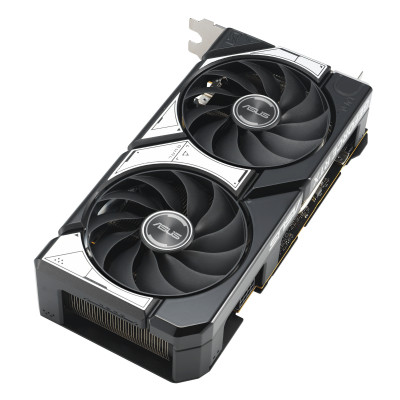

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

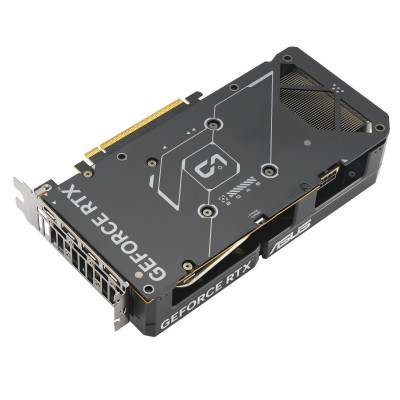

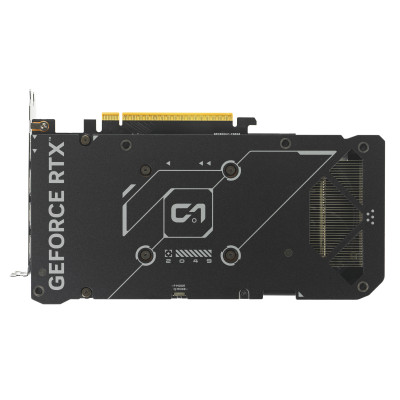

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)

Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3840
Processor boost clock speed	2535 MHz
Processor frequency (OC mode)	2565 MHz
Maximum displays per videocard	4
Memory
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Data transfer rate	28 Gbit/s

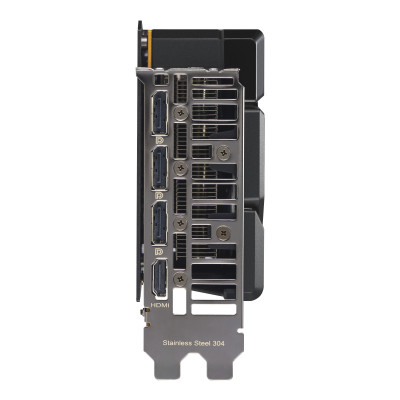

Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b
Performance
TV tuner integrated	No
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
HDCP version	2.3
NVIDIA G-SYNC	Yes
Overclocked (OC) edition	Yes
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 fan(s)
Number of slots	2.5
SFF ready	Yes
Product colour	Black, Grey
Power
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	647 g
Length	228 mm
Depth	50 mm
Height	123 mm
Packaging data
Package width	368 mm
Package depth	220 mm
Package height	68 mm
Package weight	1.11 kg
Package type	Box
Packaging content
Manual	Yes
