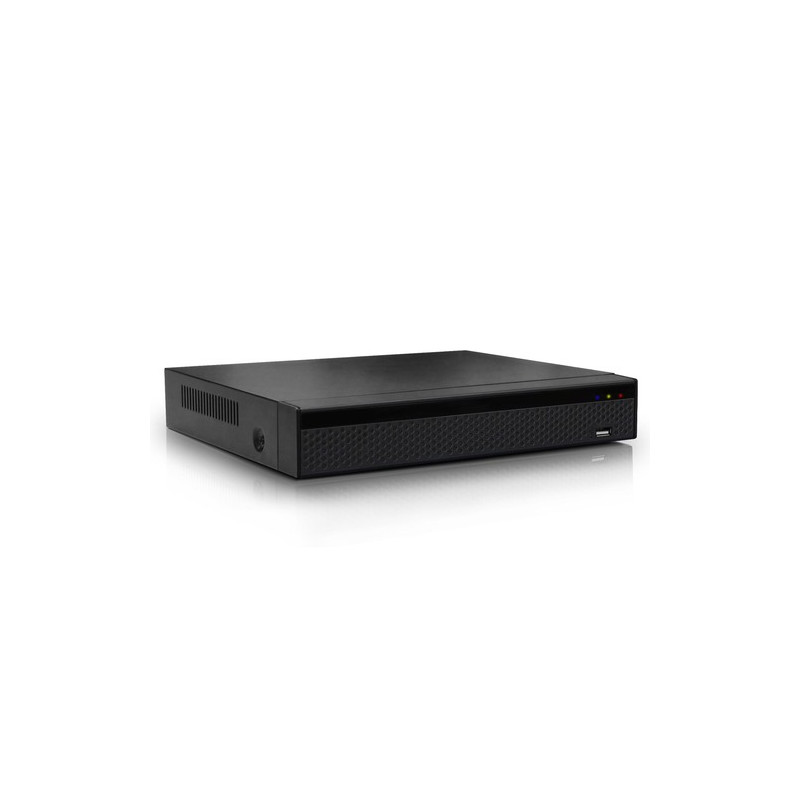

Atlantis A11-NVR1608P-AK 16-Channel Network Video Recorder with 8 PoE Ports, 5MP Max Resolution, 25fps, 8-Port PoE Switch

Product Overview

The Atlantis A11-NVR1608P-AK is a professional-grade 16-channel Network Video Recorder (NVR) designed for reliable, high-resolution video surveillance applications. This unit supports up to 5-megapixel resolution at 25 frames per second, accommodating extensive security needs in commercial and residential environments. Featuring 8 PoE-enabled channels with an integrated 8-port PoE switch delivering up to 130W power, it simplifies camera connectivity and power management from a single device.

Ideal for continuous, scheduled, manual, or event-triggered recordings, the NVR also supports advanced features such as PTZ control and motion detection. Its 4K HDMI video output ensures ultra-high-definition playback, while VGA connectivity provides flexible display options.

Specifications

• Channels: 16 video input channels, including 8 PoE ports
• Maximum Resolution: Up to 5 megapixels (3840 x 2160 pixels)
• Frame Rate: 25 fps per channel, total 400 fps
• PoE Switch: 8-port with 130W total power budget
• Video Compression: H.264 and H.265 codecs supported
• Video Output: 1x HDMI (4K supported), 1x VGA
• Audio Codec: 8kHz, 16-bit ADPCM
• Storage: Supports 1 SATA hard drive up to 4 TB (2.5"/3.5")
• Network: 8 RJ-45 Ethernet ports (10/100/1000 Mbps)
• Connectivity: 2x USB 2.0 ports
• Operating Systems Supported: Windows 7, 8, 10 variants; Android and iOS mobile support
• Protocols: TCP/IP, compatible with major web browsers (IE, Firefox, Chrome, Edge)
• Power Input: 100-240V AC, 50/60Hz; PoE output voltage 52V
• Physical Dimensions: 260mm (W) x 230mm (D) x 45mm (H); Weight: 770g
• Operating Environment: Temperature 0-32°C; humidity 20-80%
• Certifications: CE certified, black finish
• Additional Features: Backup functionality, PTZ control, motion detection, multi-language support (English, Italian)
