QNAP TVR-AI200 1U 16-Channel NVR with 16 PoE+ Ports, 1920x1080@30fps, 4GB RAM, SATA HDD Bays, 4K HDMI Output, AI Video

Product Overview

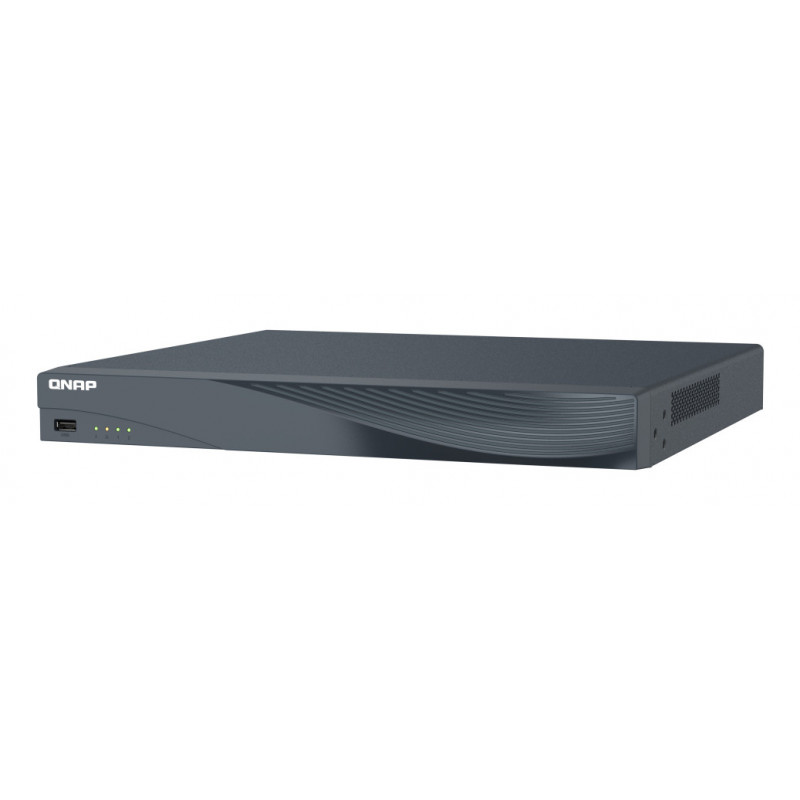

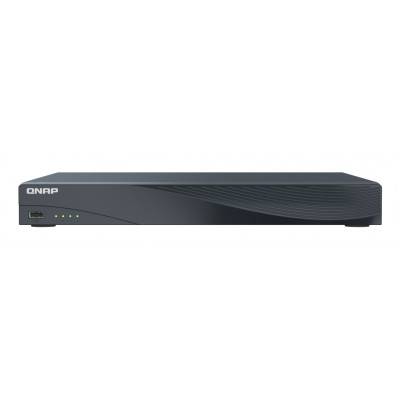

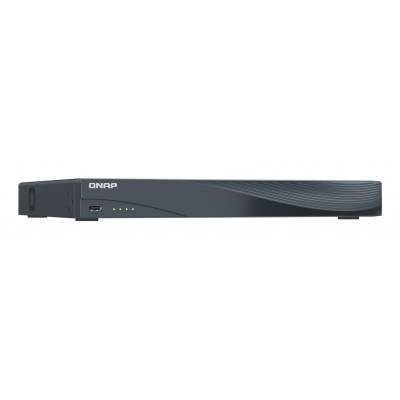

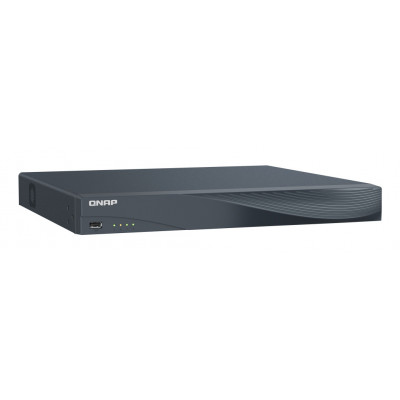

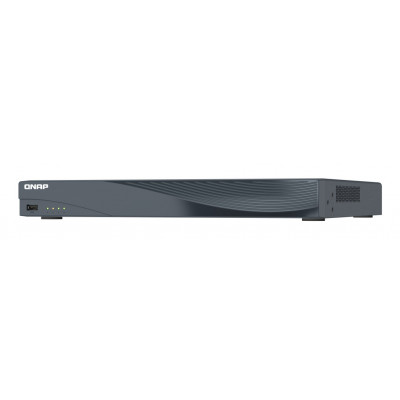

The QNAP TVR-AI200 is a 1U rack-mountable Network Video Recorder (NVR) designed for professional video surveillance applications. Supporting up to 16 IP camera channels with full HD 1080p resolution at 30fps, it offers an efficient and cost-effective solution for smart retail and small-to-medium businesses aiming to implement reliable 24/7 security monitoring.

Equipped with 16 PoE+ ports, the TVR-AI200 simplifies network setup by powering cameras directly via Ethernet cables, minimizing cabling complexity. Integrated AI acceleration supports advanced video analytics including facial recognition and people counting, thus enhancing smart surveillance capabilities even without AI-enabled cameras.

Specifications

• Video Input Channels: 16 channels
• Maximum Resolution: 1920 x 1080 pixels (Full HD)
• Capture Speed: 1920x1080 at 30 frames per second
• Memory: 4 GB RAM
• Storage: Two SATA bays supporting 2.5" or 3.5" HDDs with RAID support
• Compression: H.265+ technology for efficient bandwidth and storage usage

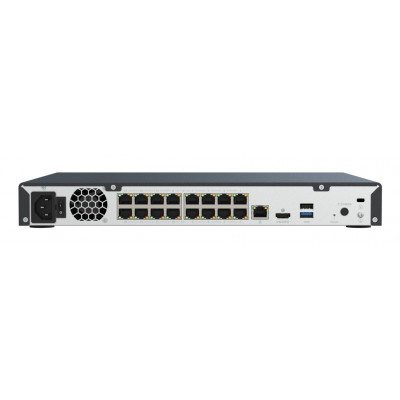

• Connectivity: 16 PoE+ ports with 130W total power budget, 1 Gigabit RJ-45 LAN port
• Video Output: Single 4K HDMI port for high-resolution display
• Processor: Quad-core 2 GHz CPU with built-in NPU for AI processing
• Dimensions: 360mm (W) x 333mm (D) x 44mm (H), 1U rack size
• Operating Conditions: 0-40°C, 5-95% relative humidity
• Power: AC 100-240V input, typical consumption 23.9W

Key Features

• Plug-and-play setup enabling installation and recording within 10 minutes
• Supports ONVIF® S/T/G standards ensuring compatibility with over 8,000 cameras from 200+ brands
• Advanced AI-powered video analytics including facial recognition and people counting
• 16 PoE+ ports supplying up to 25.5W each, compatible with high-power 4K PTZ and fisheye cameras
• Real-time video display and playback with seamless remote monitoring via computer or mobile device
• Robust RAID support for data redundancy and continuous 24/7 recording capabilities
• Compact 1U form factor with efficient cooling and quiet operation

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
