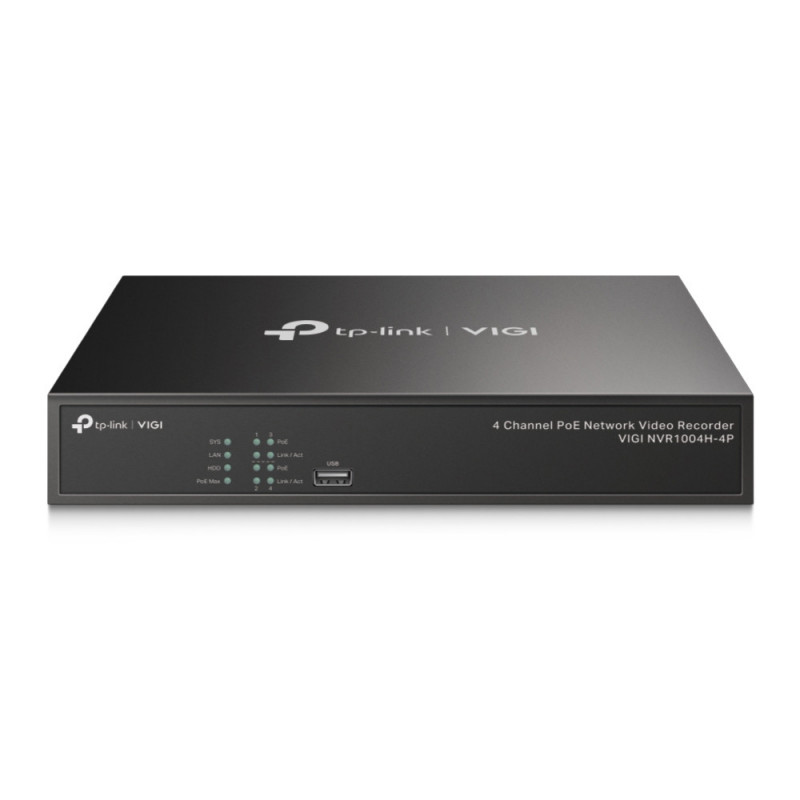

TP-LINK VIGI NVR1004H-4P 4-Channel PoE Video Recorder 53W Total PoE Power H.264/H.265 Support 4K UHD Recording 1x HDMI, 1x VGA

Product Overview

The TP-LINK VIGI NVR1004H-4P is a professional 4-channel network video recorder designed for efficient video surveillance with Power over Ethernet (PoE) support delivering a total of 53W budget. Ideal for business and home security applications requiring high-resolution recording and reliable data management.

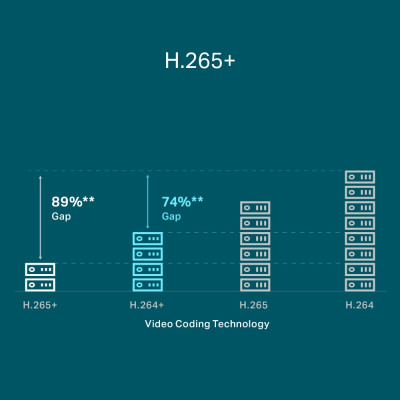

This video recorder supports multiple video compression formats, including H.264, H.264+, H.265, and H.265+, enabling optimized storage consumption. The system supports recording resolutions up to 4K UHD, providing clear and detailed video surveillance footage.

Specifications

• Channels: 4 PoE video input channels

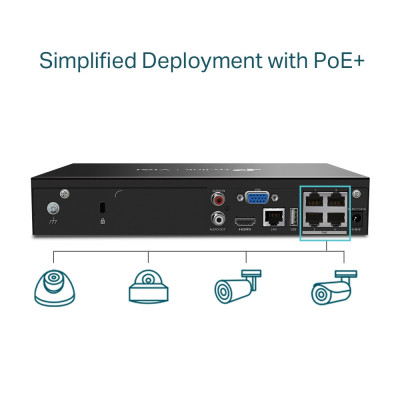

• PoE Power Budget: 53W total output, 1.31A nominal current at 53.5V
• Video Compression: H.264, H.264+, H.265, H.265+
• Maximum Resolution: 3840 x 2160 (4K UHD)
• Recording Resolutions & Frame Rates: 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps

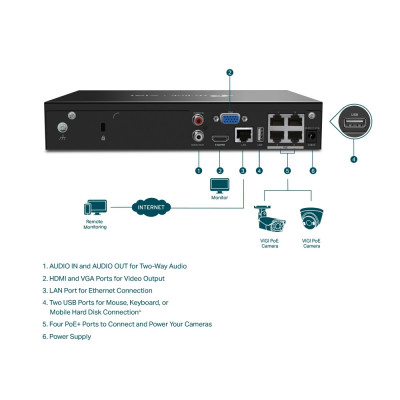

• Video Output Interfaces: 1x HDMI, 1x VGA (D-Sub)
• Audio Support: 1 RCA audio input, 1 RCA audio output
• Network Connectivity: 1x RJ-45 Ethernet LAN port, supports TCP/IP, DHCP, DNS, NTP, UPnP
• Alarm Channels: 4 inputs, 1 output
• Storage Interface: SATA for 1 hard drive, supports up to 10TB capacity (hard drive not included)
• Operating Temperature Range: -10°C to 55°C
• Dimensions (HxWxD): 45mm x 246.2mm x 148.2mm
• Power Consumption: 4.25W (NVR device only)

The VIGI NVR1004H-4P is an effective surveillance solution combining high-definition video capture, versatile connectivity, and PoE-powered camera support, suitable for medium-scale monitoring systems.
