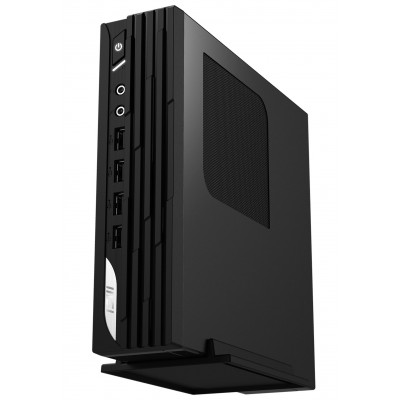

MSI Pro DP21 13M-488EU PC/workstation Intel® Core™ i5 i5-13400 8 GB DDR4-SDRAM 512 GB SSD FreeDOS Mini PC Black

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Tiny Yet Powerful
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.

Opportunity To The World for
Your E-Commerce / M-Commerce
It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce.

Ready For
Various Scenarios
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Enjoy Your Life With Dual Display
With a DisplayPort and a HDMI output port, PRO DP21 11MA allows you to enjoy the benefit of dual display, you can share and preview any information of E-commerce or e-learning material with the most efficient way.

Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port.

COM Port Device Support
With a COM port and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more.

The COM port can also communicate with the programmable logic controllers (PLCs) or with other module such as operator/HMI, motor controller,a robot or vision system in the intelligent factory.

TPM SUPPORT
TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

Wi-Fi 6 Technology
Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

MSI Center
The MSI Center takes optimization to the next level with A.I.; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.

It also helps you to find the photos or materials with Tag and brings the most efficient experience for your daily works.

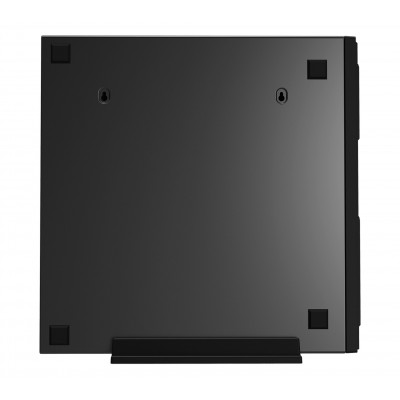

VESA Mountable Design
The VESA Mountable design allows you to hook up PRO DP21 anywhere you like that not only improves the flexibility while working with it but also let users have a good space management at home or in the office.

Easy Maintenance
Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers.

Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading.

Various I/O Ports
With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devices to make you work more efficiently.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

MSI Pro DP21 13M-488EU. Processor frequency: 2.5 GHz, Processor family: Intel® Core™ i5, Processor model: i5-13400. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Operating system installed: FreeDOS. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.27 kg. Product colour: Black

Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model	i5-13400
Processor cores	10
Processor frequency	2.5 GHz
Performance cores	5
Efficient cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Low Power Efficient-core Base Frequency	1.8 MHz
Processor cache	20 MB
Bus type	DMI4
Maximum turbo power	148 W
Memory
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x DIMM
Memory clock speed	3200 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD form factor	M.2
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 730
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Bluetooth	Yes
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1
Combo headphone/mic port	Yes
Design
Chassis type	Mini PC
Volume	2.3 L
VESA mounting	Yes
Product colour	Black
Performance
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel H610
Audio chip	Realtek ALC897
Software
Operating system installed	FreeDOS
Bundled software	Drivers & MSI Utilities Anti-Virus (60 days trial)
Processor special features
Intel Virtualization Technology (VT-x)	Yes
Power
Power supply	120 W
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	204 mm
Depth	208 mm
Height	54.8 mm
Weight	1.27 kg
Package weight	2.75 kg
Packaging content
VESA mount included	Yes
