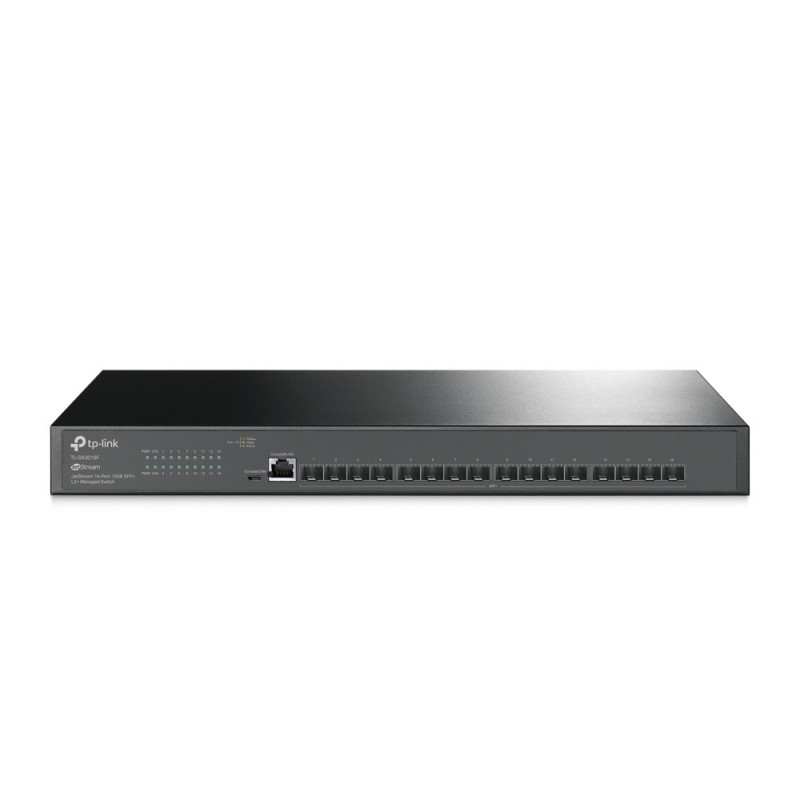

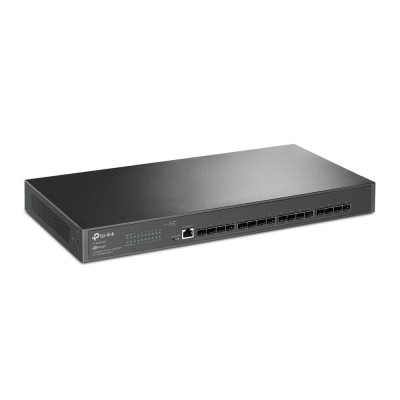

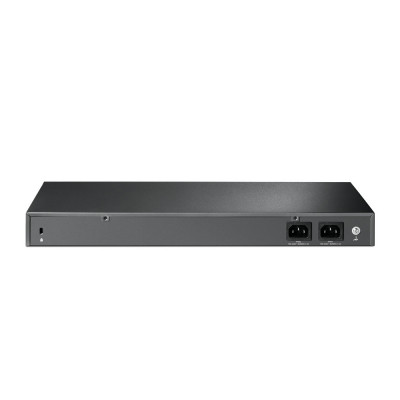

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch with RJ45/Micro-USB Console, 1U 19-inch Rack-Mountable, 320

Product Overview

The TP-Link TL-SX3016F JetStream is a professional-grade 16-port 10 Gigabit Ethernet (10GE) SFP+ managed switch designed for high-speed network environments. Featuring Layer 2+ (L2+) switching capabilities, it is ideal for enterprise networks requiring robust data transmission, advanced VLAN management, and extensive security features. The switch comes in a compact 1U 19-inch rack-mountable form factor, suitable for data centres and server rooms.

This switch supports network administrators with precise control over traffic and security, offering comprehensive VLAN configurations, multicast support, and sophisticated QoS features for optimized network performance. Its low power consumption and effective heat dissipation make it reliable for continuous operation in demanding environments.

Specifications

• Ports: 16 x 10GE SFP+ slots
• Console Ports: RJ45 and Micro-USB for flexible management access
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.08 Mpps (million packets per second)
• Jumbo Frame Support: Up to 9000 bytes
• VLAN Support: Up to 4000 VLANs including Private VLAN, Protocol-based VLAN, Tagged VLAN, and Voice VLAN
• Network Standards: Supports IEEE 802.1D, 802.1Q, 802.1ab, 802.1p, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3x
• Security Features: IP-MAC-Port Binding, BPDU Protection, MAC and Port-based Authentication, AAA, TACACS+
• Multicast Technology: IGMP Snooping support
• QoS: Advanced Quality of Service with SP, WRR+SP, Weighted Round Robin (WRR) scheduling algorithms
• Management: Web-based interface, SNMP MIB support (RFC standard compliance), System event log
• Physical Dimensions: 440 mm (width) x 220 mm (depth) x 44 mm (height), 1U rack-mountable
• Power Consumption: Max 32.74 W with AC input voltage range 100 - 240 V, frequency 50/60 Hz
• Operating Conditions: Temperature 0-45 °C; Humidity 10-90% (non-condensing)
• Included Accessories: AC power cable, Quick installation guide

Use Cases

• Enterprise and data centre aggregated 10G connections
• High-performance Layer 2+ switching with extensive VLAN and security management
• Optimized bandwidth management through advanced QoS and link aggregation
• Managed network environments requiring detailed monitoring and control

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.

Includes advanced managed switching features with 16 x 10GE SFP+ ports and flexible console access.
