TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet Switch with 16 Ports, 8 PoE+ Ports, 150W PoE Budget, Rack Mountable,

Product Overview

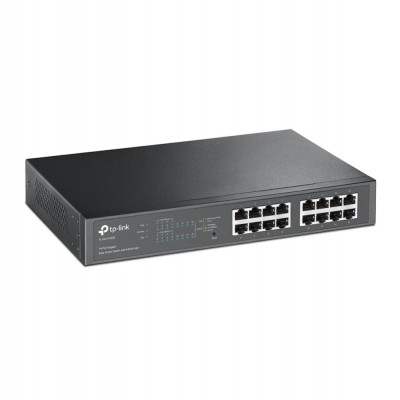

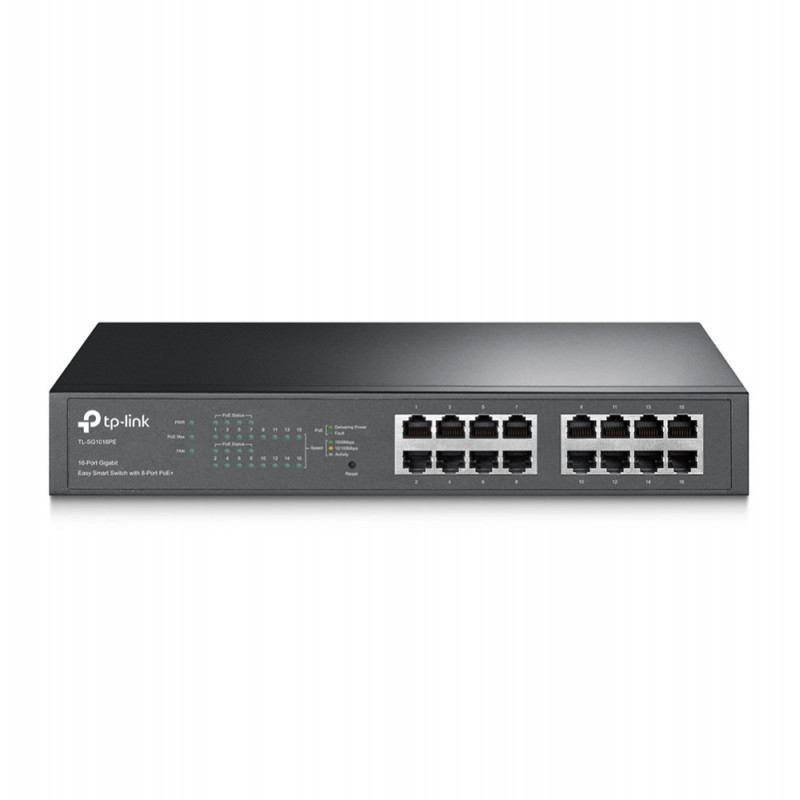

The TP-Link TL-SG1016PE is a managed Layer 2 (L2) Gigabit Ethernet network switch featuring 16 RJ-45 ports with speeds of 10/100/1000 Mbps. Designed for small to medium-sized networks, it offers robust data transfer capabilities and integrates 8 Power over Ethernet Plus (PoE+) ports to deliver power and data over a single Ethernet cable.

This rack-mountable switch is ideal for environments such as offices or businesses in Malta requiring reliable network expansion with energy-efficient technology and smart PoE power management.

Key Specifications

• Ports: 16 Gigabit Ethernet RJ-45 ports, including 8 PoE+ ports conforming to IEEE 802.3af/at standards
• PoE Power Budget: 150 W total, up to 30 W per PoE port
• Switch Type: Managed, Layer 2 switching with VLAN, QoS, and IGMP Snooping support
• Switching Capacity: 32 Gbps with forwarding rate of 23.8 Mpps
• MAC Address Table: 8000 entries
• Energy Efficient: Incorporates power-saving technology to reduce energy consumption
• Management: Web-based interface with port mirroring, VLAN, and priority settings
• Design: Rack-mountable, black chassis with LED indicators and 1 cooling fan

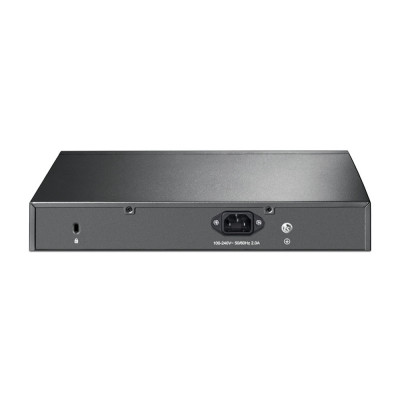

• Power Supply: Included, supports 100-240 VAC input, 50-60 Hz
• Operating Conditions: 0 to 40°C operating temperature, 10-90% relative humidity

Usage Scenarios

• Power and data delivery for high-powered PoE devices such as IP cameras, wireless access points, and IP phones
• Network expansion for offices and small business environments requiring managed switch performance and reliability
• Eco-friendly network infrastructure with reduced energy consumption and overload protection features
• Deployments requiring rack mounting and high port density for structured cabling systems

Additional Features

• Priority-based PoE power management to protect the system during power overload by automatically cutting power on lower priority ports
• Support for VLAN tagging, port-based VLAN, and QoS ensures efficient traffic management and network segmentation
• Jumbo frame support (up to 10,000 bytes) for improved data transfer efficiency
• Loop protection and IGMP snooping enhance network stability and multicast traffic handling

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.
