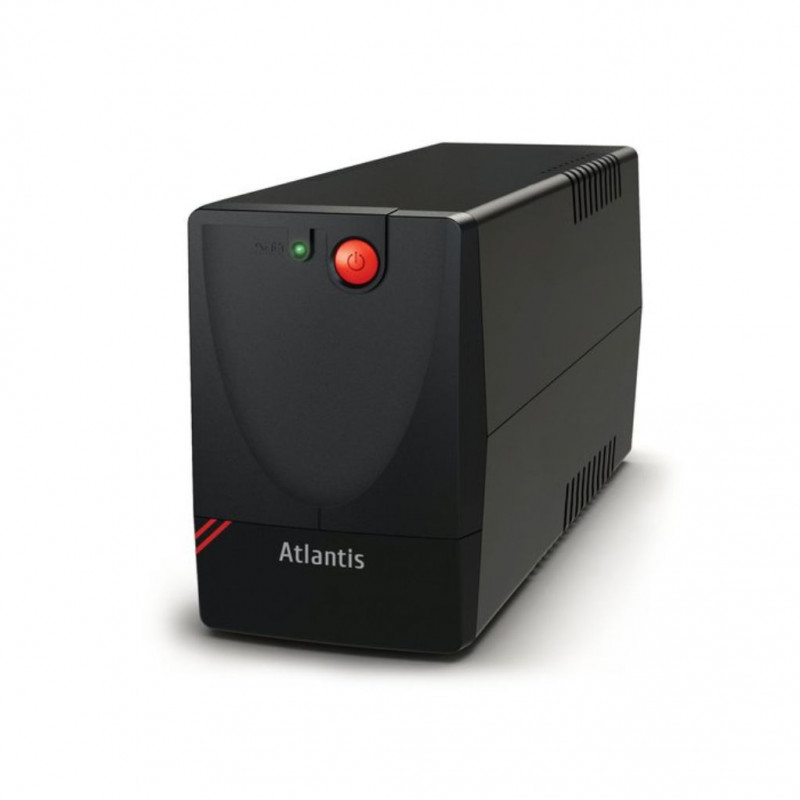

A03-X1000 SPECIFICATIONS:
- Power Rating (VA)
Maximum Instantaneous Peak: 750
Standard: 600
- Power Rating (W)
Max: 375
Standard: 360
- Input
Voltage: 170-280V
Frequency: 50Hz±5%
- Output
Voltage: 230V(±10%) [AC] / 230V(±10%) [INV]
Frequency: 50Hz (±1%)
Built-in AVR
Waveform Simulated SineWave
- Transfer Line/Battery: Less than 2-6 ms (typical)
- Efficiency: Total Efficiency Over 80%
- Battery
Voltage: 12VDC
Capacity: 12V/4.5Ah
Quantity: 1
Recharge Time: 4 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type
- Indicators (1 Led)
AC Mode (Green lighting), Battery mode (Green flashing every 10 seconds), Low Battery (Green flashing every seconds)
- Protection
Overload AC Buzzer sound every 0.5 seconds then UPS enter Fault Mode after 5 minutes (>110%)
Overload Inverter UPS shuts down after 5 seconds (>110%)
Short Circuit INV ICB & Electric Circuit / Short Circuit AC Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
Spike Suppression Meets EN61000-4-5
Noise Suppression Meets EN50991-1
- Alarm
Battery Mode (sound every 10 seconds)
Low Battery (sound every seconds)
OverLoad (sound every 0.5 seconds)
Fault (continuously sounding)
- Connections
Output: 2 x Schuko (Battery Power Supplied)
- Backup Time: 5 to 10 mins for typical PC Load
- Dimensions (WxHxD): 101 x 142 x 280 mm
- Net Weight 3,7 Kg (with Battery)
- Temperature: 0°-40° C
- Humidity: 0-95% (non-condensing)
