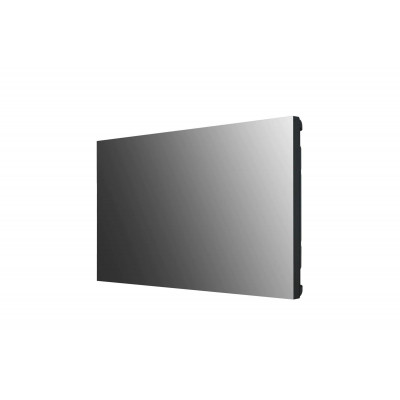

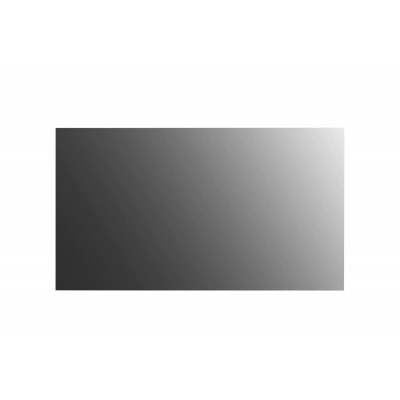

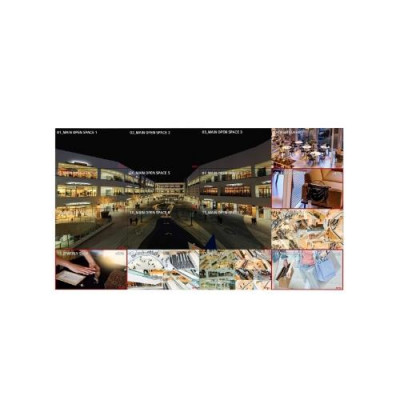

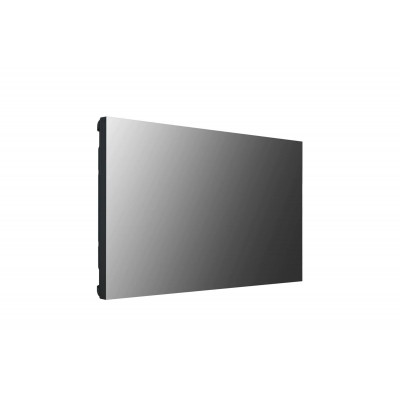

LG 55VSM5J-H Digital signage flat panel 139.7 cm (55") 500 cd/m² Full HD Black WebOS 24/7

Groundbreaking 0.44mm Even Bezel

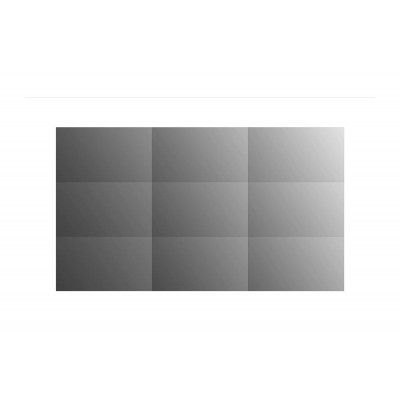

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSM5J series will provide an even more immersive experience to viewers.

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSM5J series is high enough to display vivid colours throughout the screen with no distortion.

Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSM5J series captures the attention of and captivates more viewers with lifelike colours, regardless of their viewing position.

Uniform Colour Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the VSM5J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent colour throughout the screen.

Image Gap Reduction

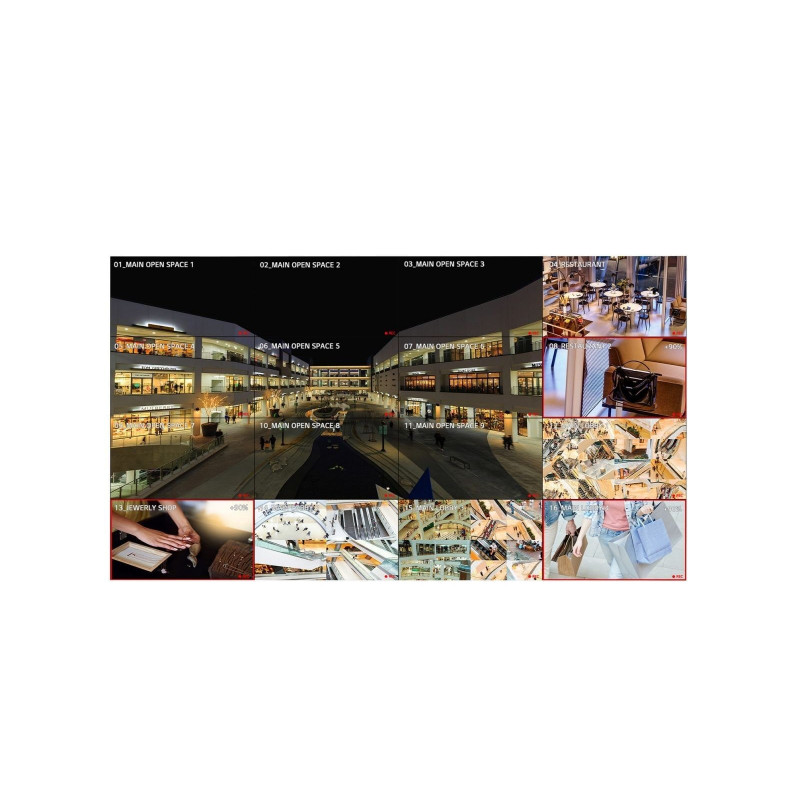

The VSM5J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the colour property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual colour adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.

Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSM5J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSM5J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VSM5J series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

LG 55VSM5J-H. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

Display
Display diagonal	139.7 cm (55")
Panel type	IPS
LED backlighting type	Direct-LED
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Touchscreen	No
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Panel life	60000 h
Haze rate	28%
RGB colour space	NTSC

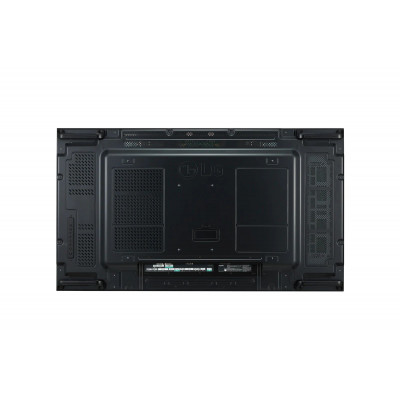

Ports & interfaces
HDMI ports quantity	2
HDMI version	2.2
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	2
DisplayPorts in	1
DisplayPorts out	1
USB port	Yes
USB ports quantity	1
USB version	2.0
Ethernet LAN (RJ-45) ports	2
Audio (L/R) in	1
Audio (L/R) out	1
RS-232C	Yes
Remote (IR) input	1
OPS module slot	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Bezel width (bottom)	0.44 mm
Bezel width (side)	0.44 mm
Bezel width (top)	0.44 mm
Performance
Purpose	Universal
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Danish, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	200 W
Power consumption (off)	0.5 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	140 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Heat dissipation	682 BTU/h
Energy efficiency scale	A to G
Computer system
Computer system	Yes
Internal memory	8 GB
Operating system installed	WebOS
Weight & dimensions
Display width	1210.5 mm
Display depth	86.5 mm
Display height	681.2 mm
Display weight	16.8 kg
Width	1210.5 mm
Depth	86.5 mm
Height	681.2 mm
Weight	16.8 kg
Packaging data
Package width	1353 mm
Package depth	263 mm
Package height	855 mm
Package weight	23.6 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC, DisplayPort, IR
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	CB / NRTL FCC Class "B" / CE / KC
Technical details
Sustainability certificates	ENERGY STAR, ErP
