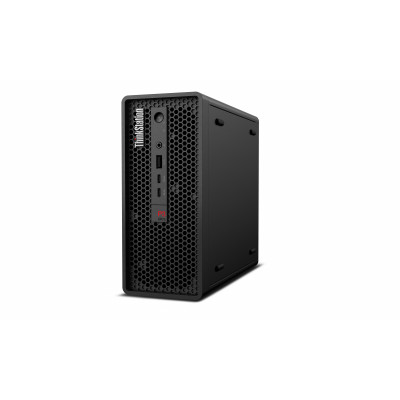

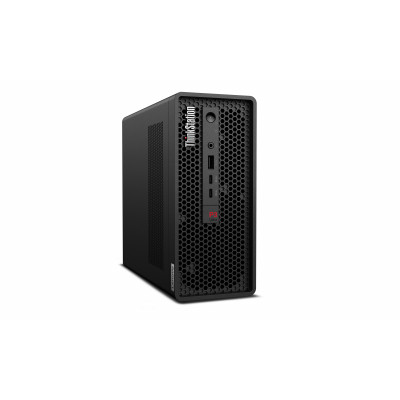

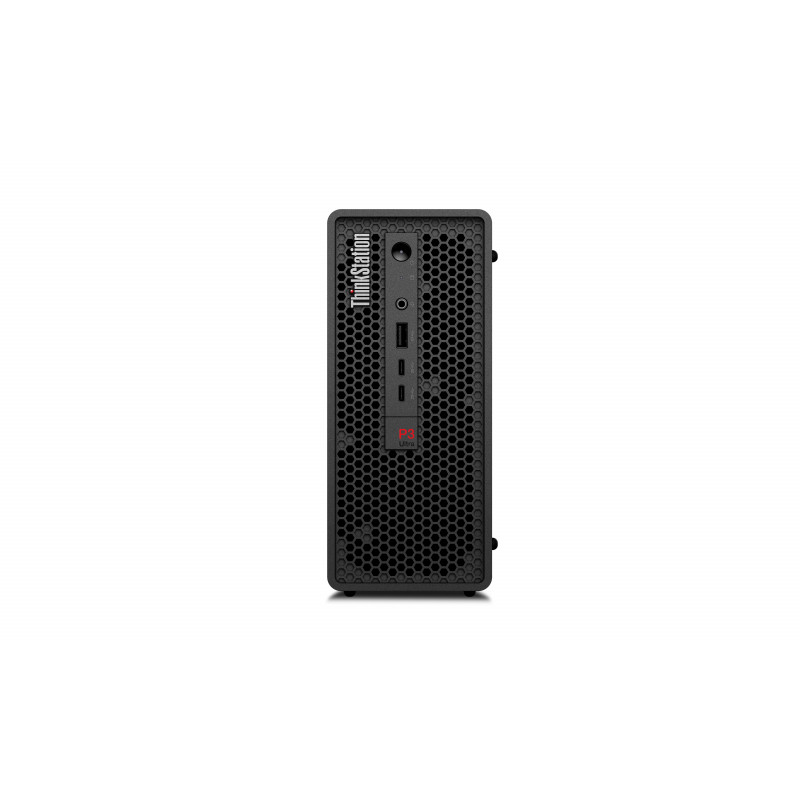

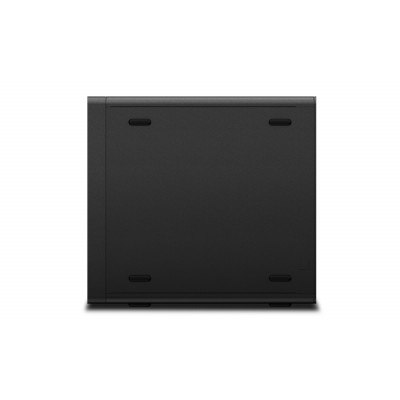

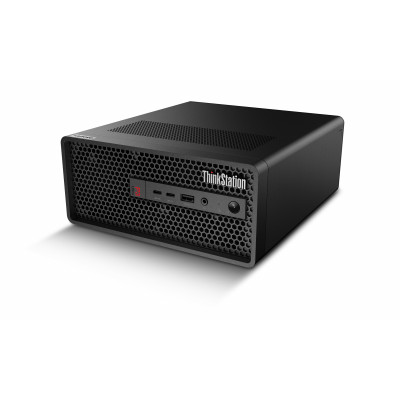

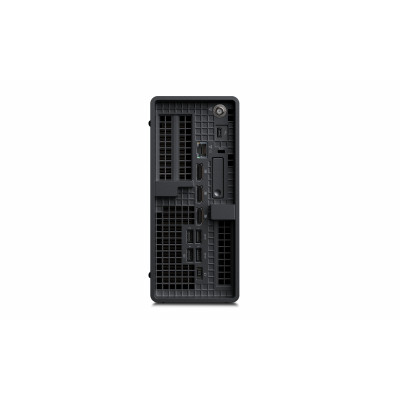

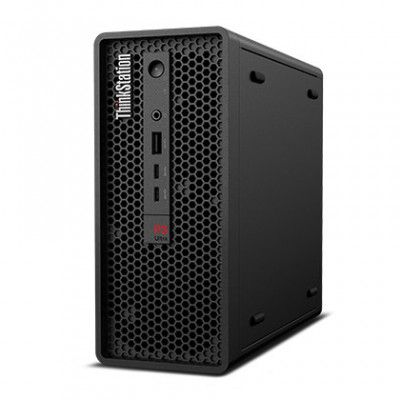

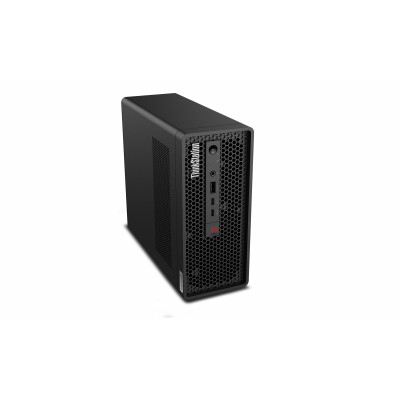

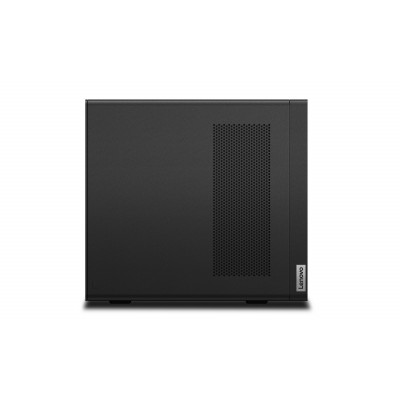

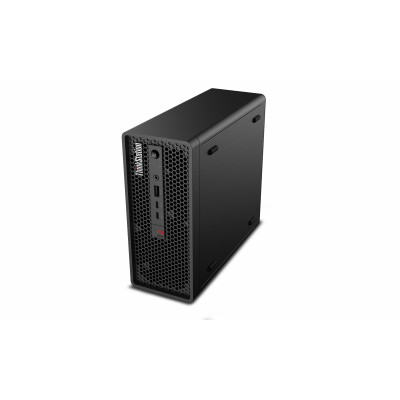

Lenovo ThinkStation P3 Ultra SFF Gen 2 Intel Core Ultra 7 265 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX Pro 2000 Blackwell Windows

LENOVO THINKSTATION P3 ULTRA SFF GEN 2
Redefining the Power of Small
Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.

POWERFUL COMBINED AI ACCELERATION
Experience AI-Enhanced Productivity, Creativity & Security
The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Lenovo ThinkStation P3 Ultra SFF Gen 2. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX Pro 2000 Blackwell. Operating system installed: Windows 11 Pro. Power supply: 330 W. Chassis type: Mini Tower. Product type: Workstation. Weight: 3.6 kg. Product colour: Black

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	265
Processor cores	20
Processor threads	20
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Number of processors installed	1
Maximum turbo power	182 W
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX Pro 2000 Blackwell
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR7
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Graphics card Mini DisplayPort ports quantity	4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
LAN controller	Intel® I219-LM
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4
Ports & interfaces
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	2
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	3
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Design
Chassis type	Mini Tower
Volume	3.9 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Workstation
Motherboard chipset	Intel W880
Built-in speaker(s)	Yes
Password protection	Yes
Password protection type	BIOS, Power on
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system language	English, French, Dutch, German, Italian
Bundled software	Lenovo AI Now
Power
Power supply	330 W
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Compliance certificates	RoHS
Certification	TCO Certified, generation 10 MIL-STD-810H
Weight & dimensions
Width	87 mm
Depth	223 mm
Height	202 mm
Weight	3.6 kg
Packaging content
Mouse connectivity	Wired
Keyboard included	Yes
